Top 3 Onshape Updates: Composite Curve, 3D Fit Spline, DXF/DWG Import

By on May 18th, 2017 in Service

Tags: ,

 New features in 3D modeling service Onshape
New features in 3D modeling service Onshape

Onshape snuck one in on us last Friday.

By which I mean, we totally missed the 11 new updates/improvements released that make the previous curve-rich update even more convincing that surfacing is maybe, could be, definitely on it’s way to Onshape. Oh, glorious day that will be!

You can see the past update history and catch the latest on the Onshape What’s New page.

Here, we pick our ‘Top 3 Onshape Updates’ and provide a quick overview of each. To see our previous picks, visit our New Onshape Features page. Tell us which one you like the best, which need work, or if we picked the completely wrong features!

  • The Stats:
  • Total Updates: 11
  • Total Updates YTD: 64

Top 3 Onshape Updates (05.05.17)

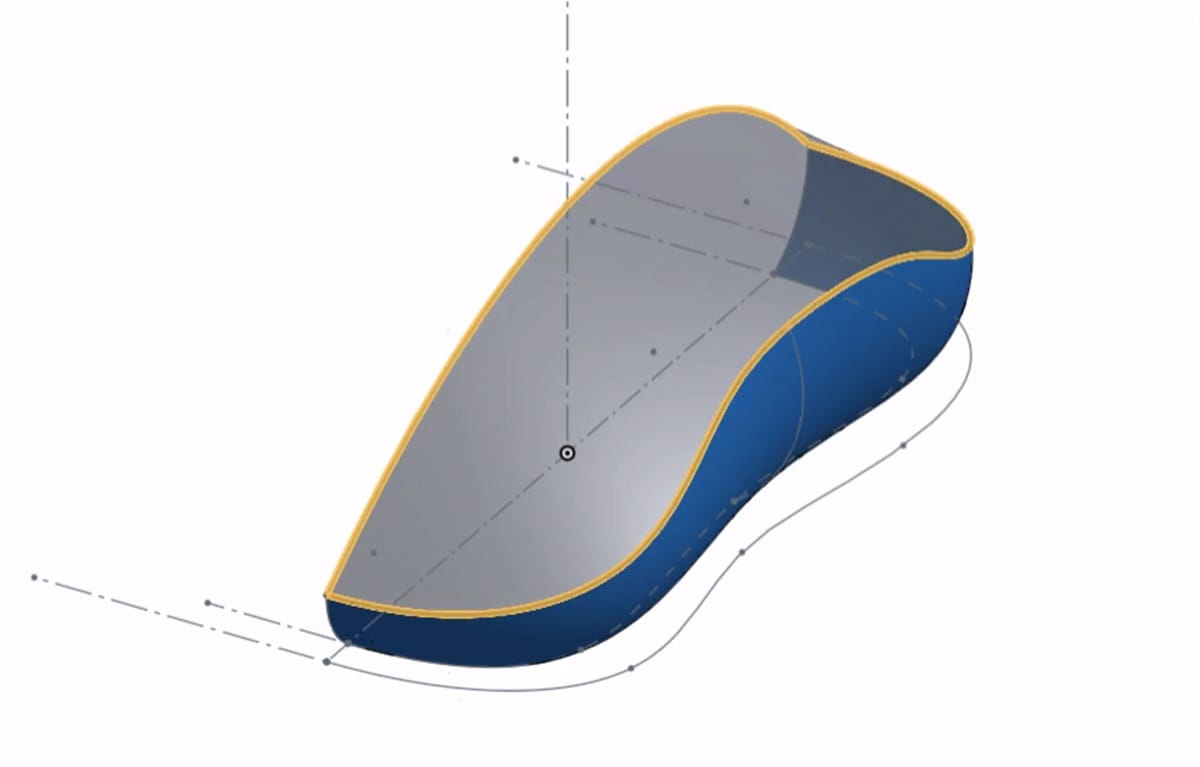

Composite Curve – Crakalackin’ Curve Combo! Create a single curve comprised of sketch geometry, edges, curves, or any combination of these.

3D Fit Spline – Click, click curve! Create a 3D spline through selected points. Start and End direction vectors and magnitude allow you to control the spline’s shape.

Insert DXF/DWG in Onshape Drawing – Use your existing templates! You can now insert a DXF or DWG into an Onshape Drawing. (SUPER important for migrating to Onshape.)

Read the rest at
