With nearly 800 systems (and growing), ranging from over 500 SLA machines from UnionTech to Stratasys, BLT and even HP for metal binder jetting.
Unionfab, a global leader in industrial additive manufacturing, has officially positioned itself as the world’s largest production-based 3D printing service by number of machines. This is a known fact in the industry but the sheer size of the company may not be immediately clear: With nearly 800 industrial 3D printers (and counting) installed across its production sites, UnionFab surpasses every competitor in both machine count and technological diversity.
Let’s explore the scope of their operations, the incredible scale of their printer factory, and how this company is literally reshaping global AM (imagine if all those SLA systems had come from 3D Systems…).
Total 3D printers at UnionFab: A breakdown by technology
UnionFab’s unmatched printer fleet covers a comprehensive range of 3D printing technologies, including SLA, SLS, SLM, FDM, MJF, PolyJet, DLP, and even metal Binder Jetting (from both ExOne and HP, but not yet from EASYMFG). Each printer is optimized for specific production needs—from small, highly detailed parts to massive, functional components. UnionFab houses over 727 production-ready 3D printers. Their SLA fleet alone comprises over 540 UnionTech machines, a number that dwarfs many competitors’ entire inventories.
| Brand | Technology | Model | Units | Build Size (mm) | Accuracy |
|---|---|---|---|---|---|
| UnionTech | SLA | LITE600HD | 394 | 600×600×400 | ±0.1–0.2 mm |
| LITE800HD | 139 | 800×800×550 | ±0.1–0.2 mm | ||
| G1400 | 4 | 1400×700×500 | ±0.1%×L | ||
| G1800 | 3 | 1800×900×600 | ±0.1%×L | ||
| G2100 | 1 | 2100×700×800 | ±0.1%×L | ||
| RS PRO450 | 5 | 450×450×350 | ±0.1%×L | ||
| Farsoon | SLS | 403P | 18 | 350×350×410 | ±0.2 mm |
| EOS | SLS | P110 | 2 | 185×235×305 | ±0.2 mm |
| P396 | 1 | 340×340×600 | ±0.2 mm | ||

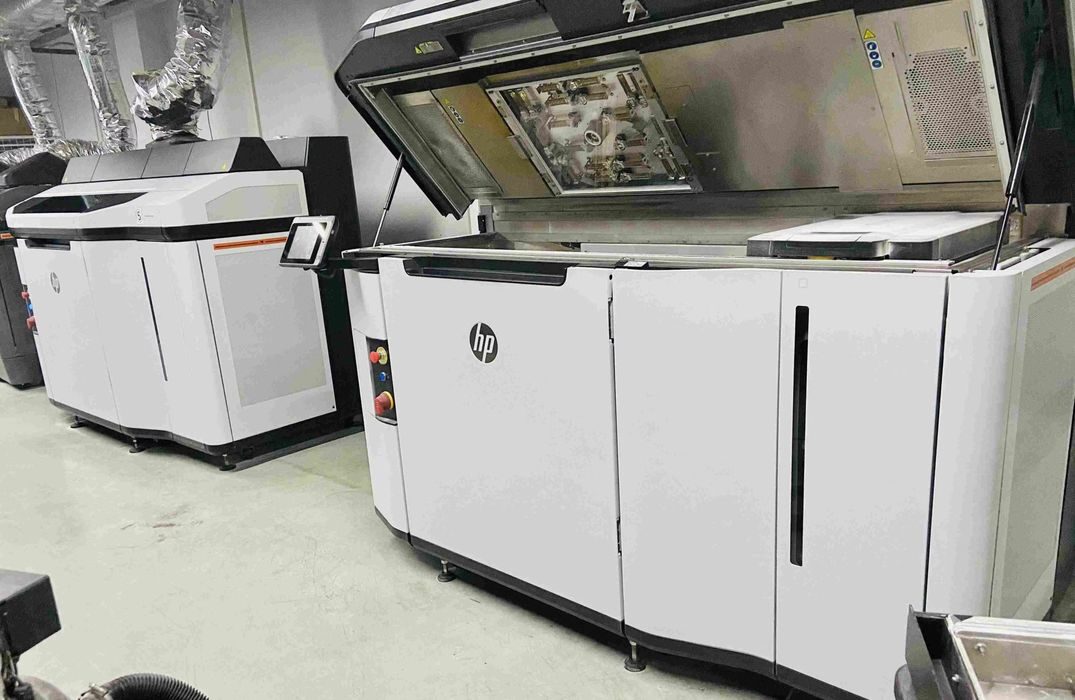

| HP | MJF | HP-4200 | 10 | 380×380×280 | ±0.2 mm |
| HP-5200 | 8 | 380×380×280 | ±0.2 mm | ||
| UnionTech | DLP | T190 | 10 | 198×108×200 | ±0.1 mm |
| T300 | 24 | 300×140×240 | ±0.1 mm | ||
| FUNMAT | FDM | HT | 20 | 260×260×260 | ±0.2 mm |
| PRO 610HT | 30 | 610×508×508 | ±0.2 mm | ||
| Stratasys | FDM | F770 | 6 | 1000×610×610 | ±0.2 mm |
| BLT | SLM | A400 | 25 | 400×300×400 | ±0.2 mm |
| S300 | 8 | 280×280×350 | ±0.2 mm | ||
| S150 | 3 | 150×150×200 | ±0.2 mm | ||
| S200 | 6 | 250×250×300 | ±0.2 mm | ||
| SLM | SLM | SLM®280 | 1 | 280×280×365 | ±0.2 mm |
| EOS | SLM | M300-4 | 1 | 300×300×400 | ±0.2 mm |
| EXONE | Binder Jetting | X25Pro | 2 | 400×250×250 | ±0.2 mm |
| HP | Binder Jetting | S100 | 7 | 430×309×140 | ±0.2 mm |
| Stratasys | PolyJet | J850 | 6 | 460X360X50 | ±0.2 mm (typical) |
Today, like many other large AM service providers both in the East and in the West, Unionfab offers 3D printing, CNC, Casting, Injection Molding and other manufacturing services with multiple materials, fast turnaround and low cost.
A division of its mother company, UnionTech, Unionfab has taken up the position of Asia’s leading 3D printing manufacturing company for rapid prototyping and on-demand production parts. Counting technologies beyond 3D printing, the total number of manufacturing machines tops 1000, across five mega-scale production factories in Shanghai, Jiangsu, Guangdong, Zhejiang, and Anhui, all in China.
Unionfab provides parts manufacturing services from 1 to 100,000 pieces, helping customers achieve one-stop service from design, rapid prototyping, and direct digital manufacturing. In addition, the Unionfab online platform is networked to hundreds of manufacturing 3D printers. This guarantees fast lead times while offering a broad array of capabilities such as order management, customization, quoting, AI process, etc. Unionfab buyers range from small start-ups to Fortune 100 companies. The company claim it has over 30,000 customers across the globe.
Read the rest of this story at VoxelMatters
