What if the most troublesome part of a resin 3D printer could simply slide out?
That is the really interesting concept I found in SprintRay’s patent application US20260307332A1. It talks about a replaceable illumination cartridge mounted beneath the resin tank, with the cartridge providing the curing light used to solidify each layer.
In an typical MSLA printer, the optical system is buried deep inside the machine. An LCD screen, light source, optical layers and supporting hardware sit below the vat. When the screen degrades, a light source fails, or something in that stack needs service, the repair can become a disassembly exercise.
SprintRay’s filing proposes separating the light engine hardware from the printer itself. A cradle is mounted to the underside of the resin tank. The illumination cartridge attaches to that cradle and can be removed using a quick-release mechanism. A replacement or refurbished cartridge can then be installed for continued printing.

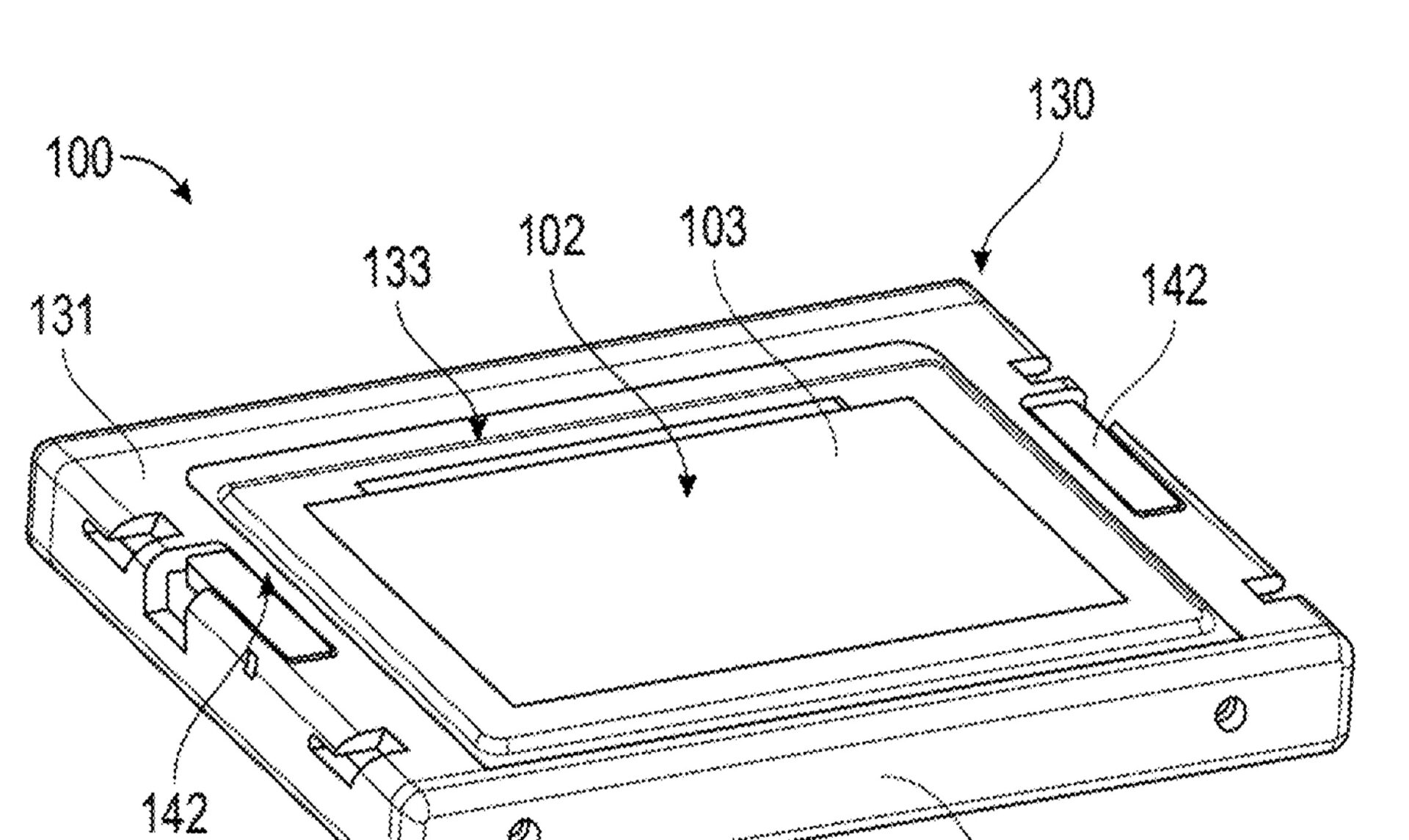

The drawings make the physical arrangement fairly easy to understand. The resin tank sits above a flat cartridge assembly. The cartridge is held in a frame, with attachment points around its perimeter. Some of the illustrated versions show levers or catches that release the assembly without requiring the operator to dismantle the entire printer.
Instead of sending an entire printer into service, a 3D printer operator could remove the illumination module and replace it with another one. The printer might be back in operation while the original cartridge is repaired elsewhere.
The patent specifically allows the cartridge to include an LCD screen or another suitable illumination device. Their description is deliberately wide. It appears intended to cover more than one kind of light engine, rather than locking their concept to a single LCD format.
I can see why SprintRay would want that flexibility. LCD panels are consumable components in the broad sense: they have a finite service life, and their performance can change with exposure, heat and operating time. A replaceable cartridge could also make it easier to offer different illumination configurations for different printer models or applications.
There is a business angle here as well. A cartridge system could turn what is usually a difficult repair into a normal spare-parts swap. It might support a refurbishment program, reduce downtime for dental and production customers, and give SprintRay an easier way to manage optical components over the life of a machine.
But the cartridge cannot merely be removable. It has to return to exactly the right position every time. The optical path must remain aligned with the resin tank, the seals must prevent resin contamination, and the electrical connection must be reliable. Even a small change in spacing or flatness could affect exposure uniformity across the build area.
This looks like an ideal approach. Resin printer manufacturers have spent years improving exposure systems, while fixing them has received way less attention. I’ve spent a fair amount of time replacing these modules in other systems, and it’s usually not fun. Being able to swap them in would be a huge step forward.
Via Espacenet
