Xiamen Hanin has patented a modular filament cutting mechanism intended to make automated material changes safer and easier to maintain.
Chinese utility model CN224510429U describes a printhead with an integrated cutter positioned beside the filament path. The patent was granted on July 17, 2026.
Integrated cutters have become increasingly common on multimaterial FFF systems. Before withdrawing filament from a hot end, the machine cuts away the softened lower section so that only solid, untouched filament is pulled back through the feed path.
Without that cut, partially molten material could deform, jam, smear against internal components, or become lodged inside the toolhead.
Cutting filament is standard nowadays. The interesting part of Hanin’s design is how the cutter itself is packaged.

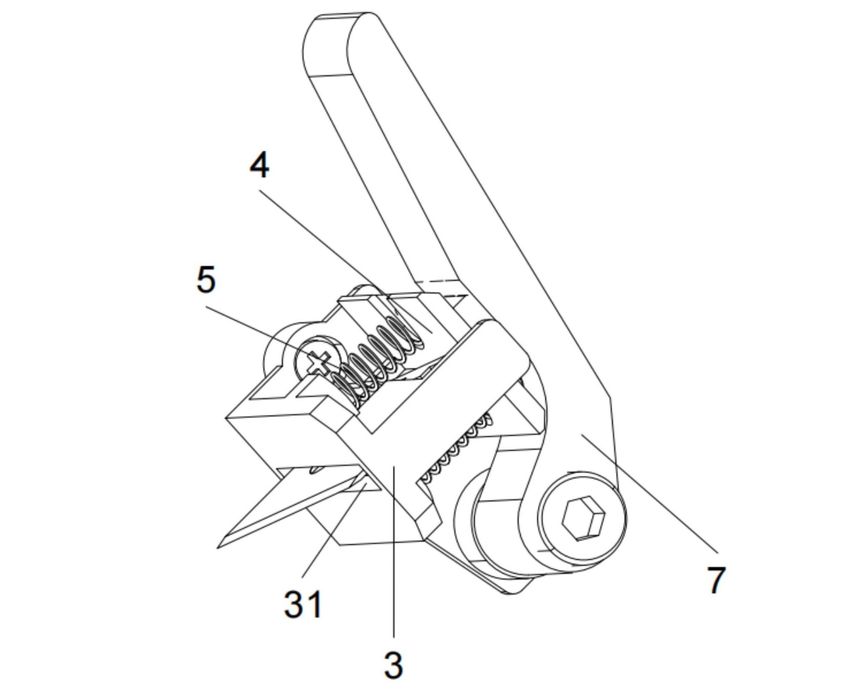

The patent proposes a self-contained cutting module composed of a guide bracket, a sliding blade assembly, and two return springs. The module attaches to the main printhead structure, while a separate outer housing covers the mechanism.
When activated, the blade slides sideways into the filament path. Once the cutting force is removed, the springs retract it away from the filament path.
The printhead carriage performs the cutting action by moving toward a fixed trigger mounted on the printer’s rail. That trigger contacts an exposed lever, which pushes the blade through the filament. Moving the carriage away allows the springs to reset the mechanism.
In other words, the printer can cut filament using its existing motion system rather than adding another motor. That keeps weight, wiring, and component count under control.
This arrangement sounds very much like the mechanically triggered cutters found on many current multimaterial desktop FFF systems of today. However, Hanin’s patent focuses on safety and maintenance.
The patent explains that some existing spring-loaded cutters depend on the outer housing to stop the blade assembly from moving outward. Remove that housing during maintenance, and the spring may eject the cutter, potentially injuring the 3D printer operator or losing small components. Have you been cut by the blade while tinkering with your FFF system?
Hanin’s bracket instead includes a retaining surface that physically captures the blade carrier. Even with the printhead cover, lever, or complete cutting module removed, the spring-loaded blade should remain inside its bracket.
The sharp end can also retract fully into the bracket, reducing the chance of accidental contact.
There are several other maintenance-focused details. The hot end, cutting module, cover, and lever can all be removed separately. The cutting blade snaps into a carrier using an elastic retaining rib and matching hole, potentially allowing the blade itself to be replaced without changing the full mechanism.
The angled blade edge should also reduce the force required to shear filament.
Automated filament handling depends on many small mechanisms working reliably over thousands of cycles. A cutter that is easier to service, harder to assemble incorrectly, and less likely to spring apart could prevent a good number of maintenance problems.
Hanin is a lesser-known Chinese manufacturer of 3D printers and currently offers products ranging from consumer FFF to resin to industrial-grade models. This patent hints that they may be working on a new consumer FFF system that might incorporate the new cutting concept.
