A new study proposes 3D printed, customized bra underwires to improve pressure distribution and comfort — a fresh consumer application for additive manufacturing.
The research, published in the textile journal Tekstilec, investigates how geometry tailoring enabled by 3D printing could ease localized pressure that conventional metal underwires often create. While the paper’s title telegraphs the goal — enhanced pressure distribution — the broader implication is a scan to print workflow for personal fit, a playbook already familiar from orthotics and 3D printed footwear.
Underwires are traditionally formed steel components chosen from a limited size set, forcing compromises across body shapes. The premise here is straightforward: if you can tune cross section, curvature, and localized stiffness per individual, you can spread load over a larger area and avoid hotspots. Additive offers the geometric freedom to vary thickness, integrate ribs, or even embed lattice zones without tooling.
From Rigid Wire To Tunable Stiffness

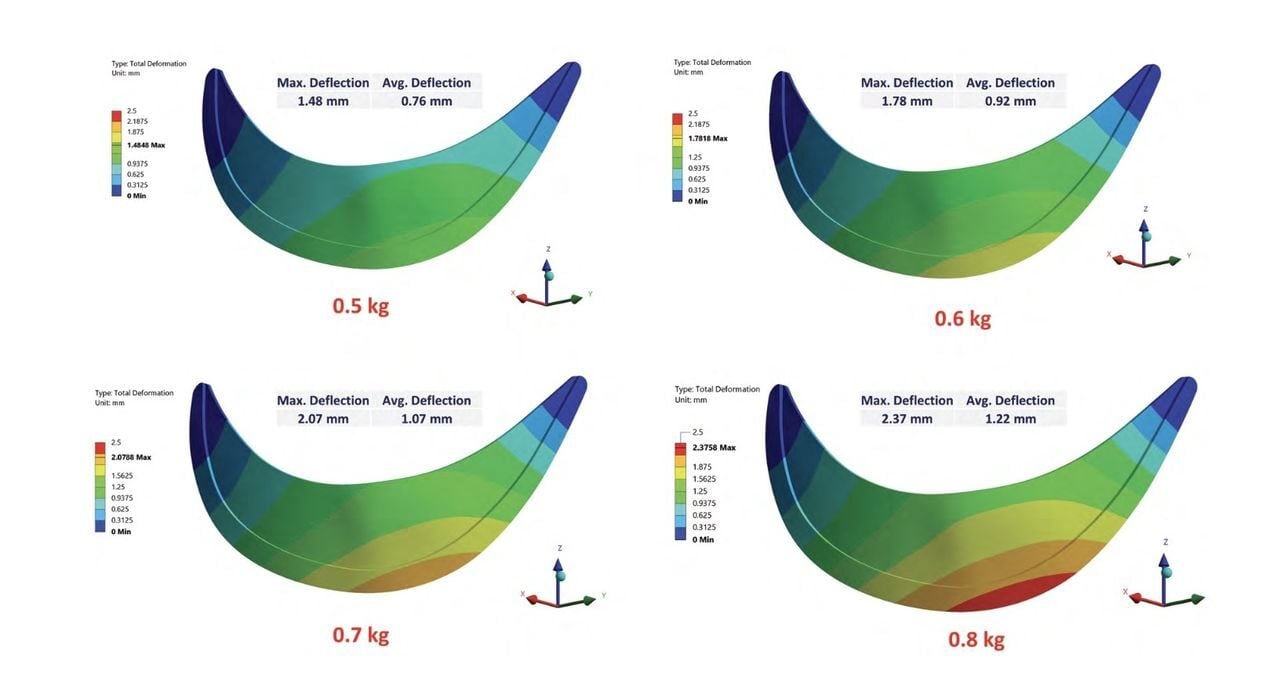

Although the authors’ full parameters and print settings are not detailed in the abstract-level materials available, the mechanical pathway is intuitive. A more compliant, shape stable underwire could be produced in flexible polymers, with variable beam widths and fillets along its length to modulate bending. Lattice features could flatten peak pressures under the sternum and at the underarm, while preserving lift and shape where needed.
The materials palette for such a part spans multiple additive processes. Thermoplastic polyurethane (TPU) is an obvious candidate via Selective Laser Sintering (SLS) or HP’s Multi Jet Fusion (MJF); elastomeric photopolymers are possible via stereolithography (SLA); and commodity TPU can be used on FFF systems for prototyping. The paper does not disclose the exact material or platform, so treat these as representative routes rather than confirmed implementations. The mechanical challenge will be fatigue under daily flex, sweat exposure, and repeated wash cycles — a different problem set than footwear midsoles but no less demanding.
What Is New Versus Incremental
Customization in intimate apparel is not new, but additive introduces two meaningful shifts. First, geometry can be tuned continuously rather than picking from a discrete size matrix, likely reducing the need for foam padding or rigid inserts to compensate. Second, the underwire can become a multifunctional component — not only providing lift, but also acting as a compliant interface that spreads load and potentially integrates features for stitching alignment or strap anchoring, which could reduce assembly touch time.
However, the production realities cannot be ignored. An underwire is a thin, high aspect ratio part that will challenge print orientation and nesting. Throughput is key: lingerie volumes are high, and any AM solution must demonstrate cost per part competitive with stamped and formed wire. On powder bed systems, thousands of small parts can be stacked, but depowdering and QC add labor. On resin systems, solvent handling and post cure steps introduce complexity. The authors do not provide cycle time, unit cost, or fatigue data, so the manufacturing economics remain an open question.
Who Benefits, And How This Scales
If validated, this approach would interest specialty lingerie brands and custom fit boutiques first, where higher price points support bespoke workflows. A likely pipeline would capture torso geometry via mobile scan, generate parametric underwire variants with localized stiffness targets, and print in batches at a service bureau. Over time, high street brands could adopt a hybrid model: a handful of regional hubs printing size clusters tuned to regional fit data, rather than one-off bespoke parts.
The comfort claim will ultimately live or die by measurement. Pressure mapping across the torso, wear trials over months, and laundering tests at 40C to 60C would provide the evidence designers need. An additional gating factor is regulatory and brand policy for skin contact materials; many elastomers require migration and irritation testing before they can be placed against the skin for extended periods.
For AM, the larger story is the steady creep into mainstream soft goods. We have seen insoles, midsoles, and orthoses; intimate apparel may be next if materials, fatigue resistance, and cost align. If additive can turn a rigid, one shape wire into a tuned, comfortable interface, it will have earned a subtle but meaningful win in everyday wear.
Via Tekstilec
