Researchers propose a Vision Transformer approach that detects FFF surface defects in real time with on-demand explainability.

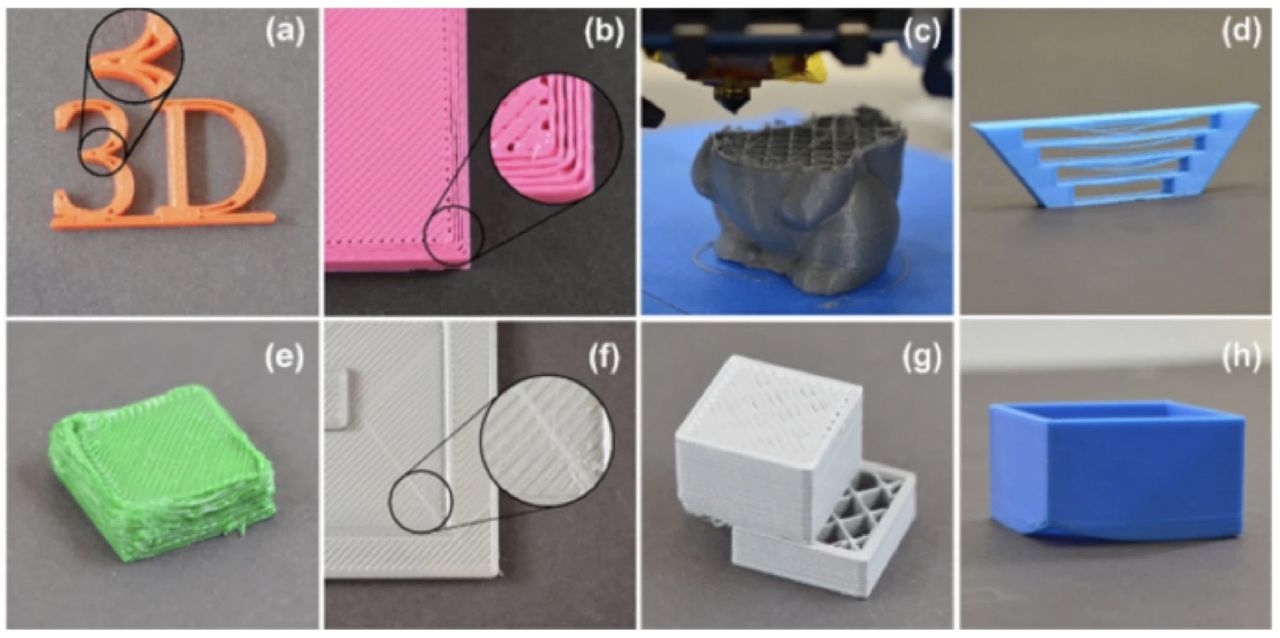

Material extrusion has plenty of webcam watchers detecting spaghetti failures, but most rely on RGB images and local features. That leaves subtle height deviations, long-range patterns undetected. A new study from Louisiana State University and Auburn University tackles the gap by fusing depth sensing with a Vision Transformer (ViT) and explainable AI (XAI) tools to classify four common conditions in FFF 3D printing: normal, under-extrusion, over-extrusion, and void/empty regions.
The system scans each layer with a 2D laser profiler to build high-fidelity depth maps, then feeds patch tokens into a ViT that uses self-attention to relate distant surface regions. Unlike many monitors, this design intends on catching spatially distributed defects and provide evidence of why a call was made.
Why Transformers And Depth Sensing Matter
Vision Transformers (ViTs) treat an image as a sequence of tokens and learn global relationships via self-attention, a natural fit when a small ridge is only meaningful relative to a distant baseline. In other words, the model can reason about the whole layer at once instead of hoping a deep stack of local convolutions happens to connect the dots.
Depth maps made from 2D laser scanning capture actual surface topology, not just color or texture. That is important in FFF where under- and over-extrusion often appear as height deviations that RGB can miss or misinterpret. At one hundred patches per layer, the full scan evaluates in about one and a half seconds — comfortably inside typical inter-layer delays of two to four seconds.
To build trust, the team layers in XAI. Attention visualizations, gradient-based attribution via Integrated Gradients and saliency, plus latent-space projections (t-SNE and UMAP) show which regions and representation structures drove a prediction. And a prediction means we have achieved decision support.
The researchers benchmarked their ViT against ResNet-50, YOLOv5-s and a shallow MLP. The transformer led on macro-F1, particularly on under- and over-extrusion classes that benefit from global context. Latency measurements used an NVIDIA RTX 4080, so edge-device times will vary by equipment configuration, but the per-layer budget suggests real-time feasibility on modest GPUs, and possibly on high-end CPUs with tuning.
Two practical issues stand out. First, sensing: laser profilometers like the KEYENCE LJ-V series deliver excellent topography but add cost, calibration, and alignment overhead compared to a webcam. Second, generalization: the dataset includes PLA on a Creality Ender-5, and the paper does not claim cross-printer, cross-material performance. Real factories print ABS, nylons, composites, and operate across varying humidity and temperatures; domain shift can erode accuracy if not managed.
Even with those constraints, the workflow could pay off for service bureaus, internal prototyping labs, and production cells where scrap, reprints, and touch time matter greatly. The ability to flag defects layer by layer — and show why — reduces surprises at the end of a build and shortens root-cause cycles.
This looks like quite an interesting approach, but clearly today’s FFF devices would require additional hardware to make it actually work.
Via The International Journal of Advanced Manufacturing Technology
